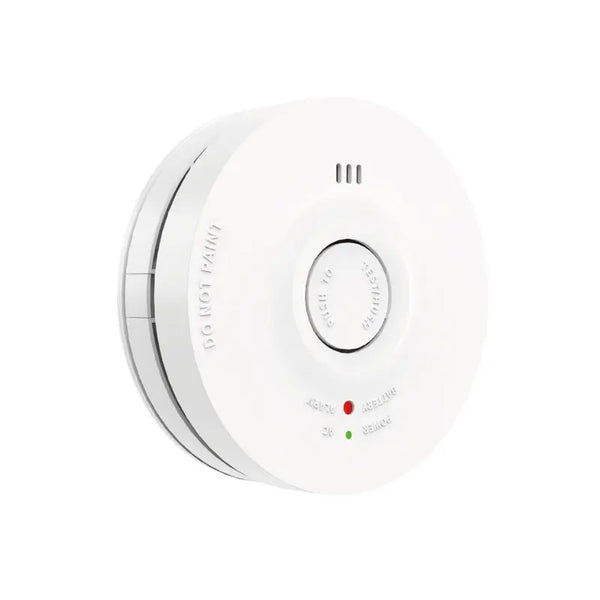

This optical photoelectric smoke detector AJ710MR-3 is designed specifically for the Australian market and complies with all relevant Australian regulations. Its non-replaceable DC 3V backup battery provides up to 10 years of life, so you don’t need to worry about AC power outages.
The ANKA 240V smoke detector is large enough to easily cover the space where your old smoke detector was installed. This means you won’t need to drill any additional holes in your ceiling.

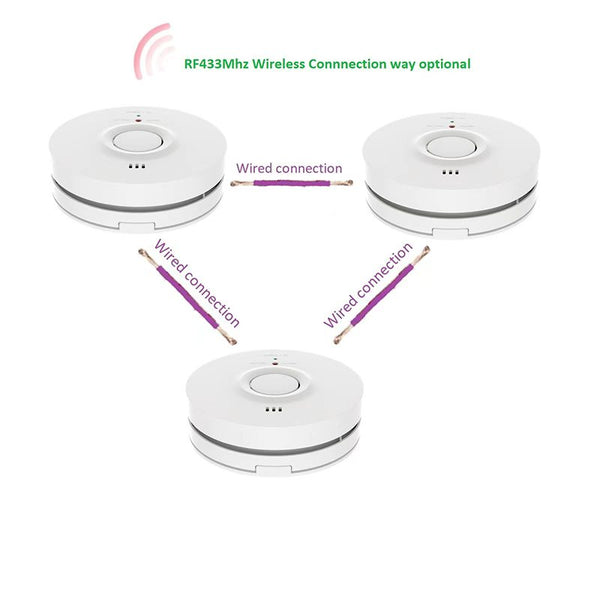

If you want a reliable, high-quality smoke detector that complies with all Australian regulations, the ANKA-AJ-710MR-3 is the ideal choice. Equipped with a backup battery and wireless connectivity, you can interlink your smoke alarms up to 22 units wither by hard wire or RF wireless frequency.
The built in 10 year life battery means no need to replace your battery every 12 months.
Product Parameters
Power supply：220V-240V 50HZ with backup battery 3V
Product lifespan：10 years
Alarm modeLED & Buzzer
Sound level：>85dB

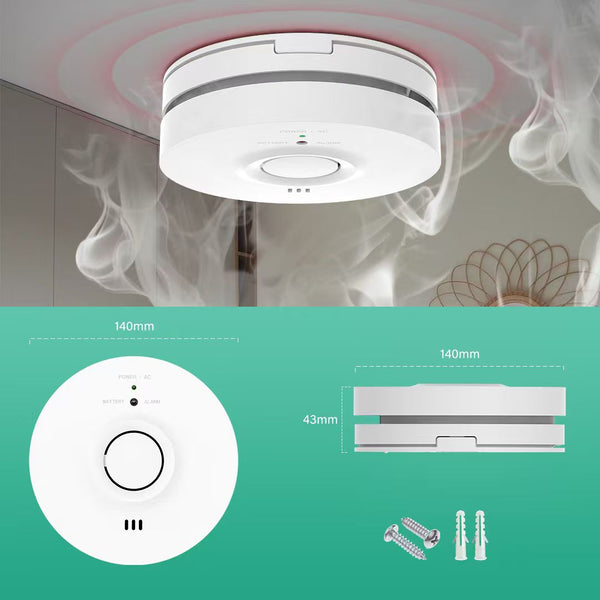

Size：Ф140.5mm x H43mm
Number of interconnections：>22PCS
Connection distance：>200m outdoor / 20-40m indoor
Execute criterion：AS3786:2014
Wireless Paring Procedures:
Step 1: Turn on the power switch on the bottom of the product.
Step 2: Press and hold the button on each of the alarms for the duration of 4x red flashes of light, clear the data of the new device. On the 4th flash of the red light, release the button. Repeat this step with each alarm you would like connected in the network.
Step 3: Select the alarm you would like to be your "Master Unit" and press and hold the button for the duration of 3x flashes of the red light. The red light will keep flashing for one minute whilst is waits for other devices to join.
Step 4: On the slave unit's you would like to pair, press and hold the button for the duration of 2x flashes of the red light. Upon successful pairing, the RED LED will flash 2x times along with two short beeps.
Repeat this step with each unit you would like to pair up and have connected on your network.
Step 5: If you need to end the pairing process in advance, short press the button once on “Main Unit”.
Step 6: To test all paired units, press the button on top of one of your connected detectors and all your alarms will sound. Please note, this will take 10-15 seconds. Be cautious not to press any buttons during this time
CSIRO ACTIVFIRE CONFORMITY: AFP-39423
