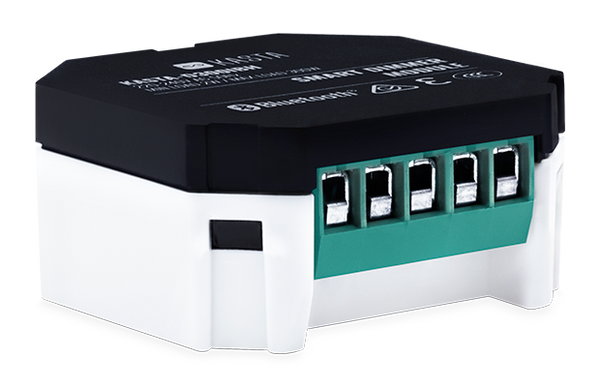

Kasta Dimmer Module
Features
- Phase cut trailing edge (TE) dimmer
- 5-wire connection for power, load and momentary push button mechanism
- Reliable Bluetooth® mesh network connectivity to all KASTA devices
- 8-way multiway control
- Short press for ON/OFF control
- Long press for dimming control
- Over-current protection
- Supports core KASTA functionality – control devices, groups, scenes, timers and scheduling
- Suits all Australian standard wall plates using a momentary mechanism
- iOS and Android app setup and control
Product Code: KASTA-D300IBH
Power Supply 220-240V a.c. 50Hz
Operating Ambient Temperature -20 to 40°C
IP Rating IP20
Thermal Derating 25 to 40°C (300W-165W)
Physical Connection Type Terminals
Wiring Connections Active, Neutral, Load & Momentary
Mechanism
Momentary Input (T1/T2)
Local signal input only (not 240V a.c.)
Max. wiring length between T1/T2 and
momentary mechanism is 10m
LED Load Wattage 2W to 300W
Dimming Method Phase Cut Trailing Edge
Dimming Range 2-100%
Multi-gang Derating 2-225W, 3-165W @ 25°C
Housing Material Polycarbonate (PC)
Standards Complied
CoS SAA 183649, AS/NZS 60669.2.1,
AS/NZS 60669.1, AS/NZS CISPR 15,
AS/NZS 4268
