PRODUCT DESCRIPTION

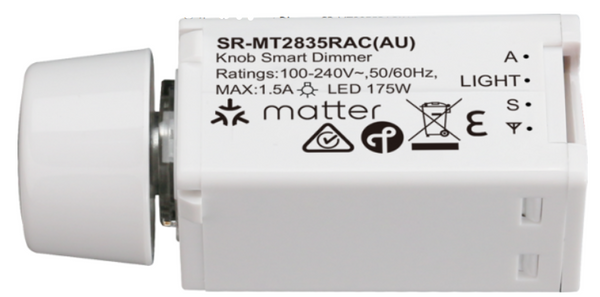

• Matter knob smart dimmer
• Neutral free, simple wiring
• Supports resistive loads, capacitive loads or inductive loads
• Enables to set minimum brightness and startup brightness
• 1 channel output, up to 350W
• Both leading edge version and trailing edge versions are available for choosing, preset by factory setting
• Enables to control ON/OFF and light intensity of connected light source
• App control through Matter (e.g. Apple Home, Amazon Alexa, Google Home)
• Can be voice controlled through Apple Siri, Google Assistant, Amazon Alexa

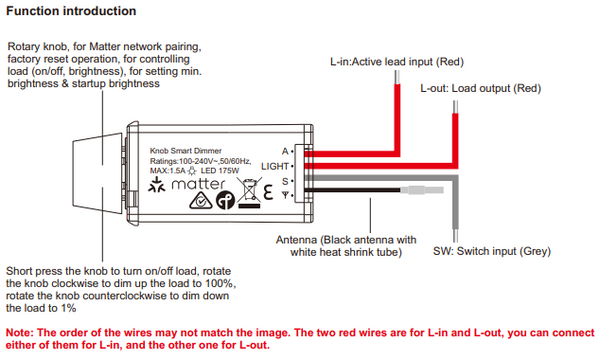

• With push switch input, can be controlled by universal AC push switches

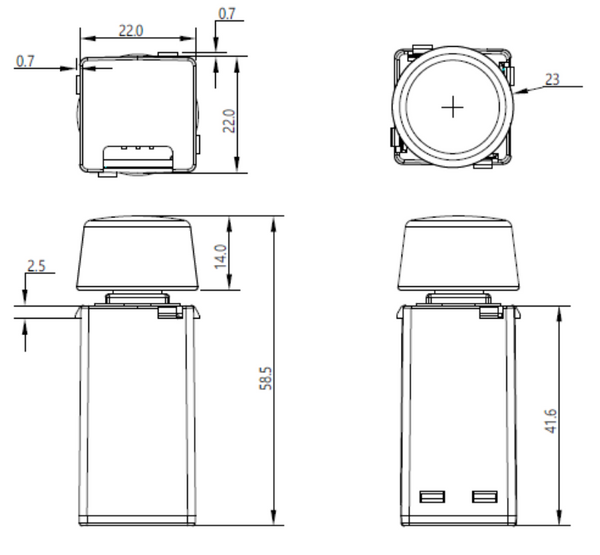

• Standard size, can be compatible with existing Australia wall switch plate
• Radio Frequency: 2.4GHz
• Waterproof grade: IP20
Product Features
Main Features:
• Advanced microprocessor control
• Implemented algorithm of smart light source detection
• Active power and energy metering functionality
• Soft start function
• Innovative minimum dimming level and startup brightness setting functions
• The Bypass is an extension unit
As a dimmer it operates under the following loads:
• Conventional incandescent and HV halogen light sources
• ELV halogen lamps and dimmable LED bulbs (with electronic transformers)
• MLV halogen lamps (with ferromagnetic transformers)
• Dimmable LED bulbs
• Supported dimmable light sources (power factor > 0.5) with minimal power of 3VA using the Bypass (depending on the
type of load)
Trailing edge or leading edge dimming mode can be set by factory setting to control following types of loads:
• "Trailing edge" for resistive loads
• "Trailing edge" for capacitive loads
• "Leading edge" for inductive loads
Note: factory default setting is trailing edge.
• DO NOT install with power applied to device.
• DO NOT expose the device to moisture.
