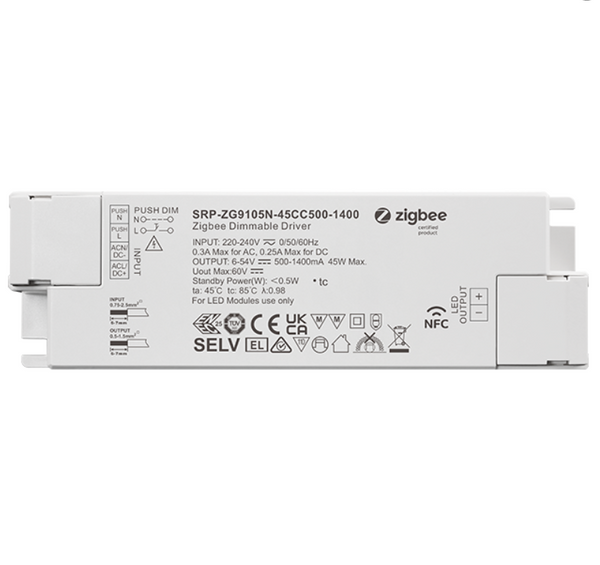

PRODUCT DESCRIPTION
• Dimmable LED driver, ZigBee device based on ZigBee 3.0 protocol
• Dimmable LED driver. Max. output power 45W
• 500-1400mA current selectable via NFC program tool. Min current gear lower to 0.1mA
• Dimming curve/Power on state/Soft start/Soft off via NFC program tool.
• Class Ⅱ power supply, full isolated plastic case
• High power factor and efficiency
•PUSH DIM function enabled
• Able to On/Off and control LED lighting luminaries‘ brightness
• Amplitude/CCR dimming, smooth and deep dimming
• ZigBee end device that supports Touchlink commissioning
• Can directly pair to a compatible ZigBee remote via Touchlink
• Supports zigbee green power and can bind max. 20 zigbee green power switches
• Compatible with universal ZigBee gateway products
• Waterproof grade: IP20, suitable for indoor LED lighting applications
• 5 years warranty

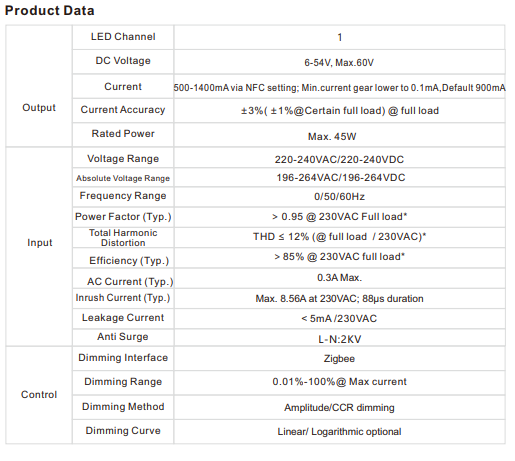

SPECS:
| LED Channel |
1 |
| DC Voltage Output |
6-54v (Works with both 12v and 24v LED Strips |
| Current Min |
250 - 700ma via NFC - Default 500ma |
| Power |
45 Watts |
| Dimming Range |
0.01% - 100% |
| Dimming Method |
Amplitude / CCR Dimming |
| Working Temp |
-25 - +45 Degrees Celcius |
